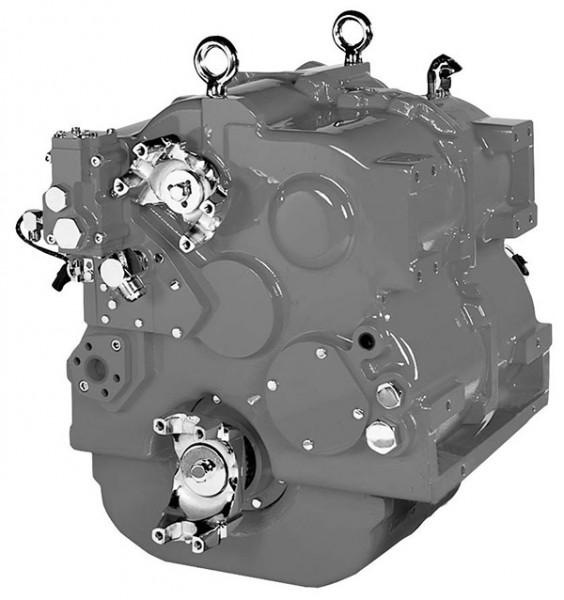

TD61-1179 ARFF

TD61-1179 – UP TO 760 HP (567 kW)

The 1179 transmission system consists of an engine mounted 17.5 or 18.5 inch type 8 torque converter, a 6 speed power-shift transmission and an advanced electronic control system.

Specifications

• Maximum gross input power (ARFF only)
  • 691 hp (515 kW) @ 1800 RPM
  • 700 hp (522 kW) @ 1900 RPM
  • 760 hp (567 kW) @ 2100 RPM
• Maximum gross input torque (ARFF only) 2420 lb-ft (3280 Nm)
• Maximum input speed 2300 RPM
• Weight 1700 lbs. (770 kg)
• Maximum oil temperature at converter outlet 250Ëš F
• Sump capacity 7 USG (26.5 liters)
• Cooling required ~25% of GHP
• Cooling pump capacity ~39 GPM @ 1900 RPM
• Remote mounted
• 30-70, 50-50, 70-30 with differential lock
• TD61-1179 output rotation same as engine for forward
