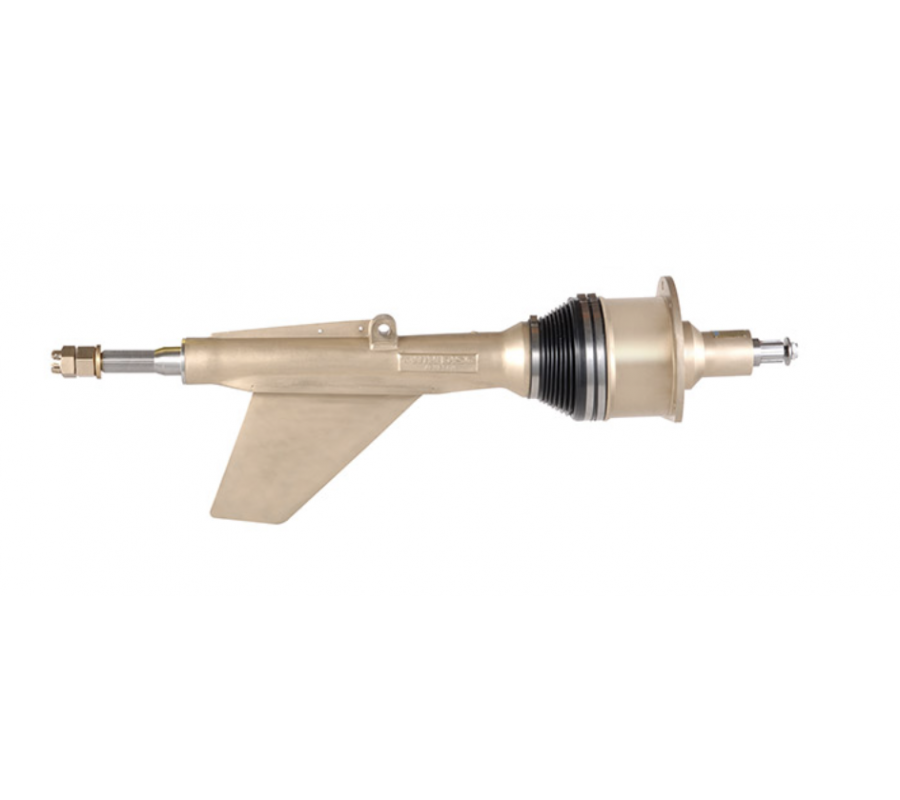

Arneson ASD08

Description

• Bronze in-line (ASD08B1l)
• Aluminum-Bronze Drop-center (ASD08B3l)
• Bronze thrust assembly
• Bronze (B) or aluminum (C) drop box (drop-center drives only)
• Internal lube oil reservoir
• Steering cylinder with external hoses and fittings
• Trim cylinder with external hoses and fittings
• Standard (or optional longer) fin
• Standard 25-tooth (or optional 26-tooth) splined propeller shaft
• Installation manual, owner’s manual and drive ball wrench (one per ship set)

Accessories

• Anode Kit
• Cylinder position indicator kits with gauge
• Hydraulic power steering system
• Gearbox adapter
• Driveline (cardan shaft)
• Tie-bar (mechanical or hydraulic – for multiple engine vessels)
• Inboard cylinder mounting kit
• Propeller

Technical Data

ASD08 Drop-Center & In-Line Surface Drive Schematics

http://www.twindisc.com/wp-content/uploads/2015/12/inline-300x169.png 300w" sizes="(max-width: 571px) 100vw, 571px" style="border: 1px solid black; vertical-align: middle; margin: 0px; max-width: 100%;">

http://www.twindisc.com/wp-content/uploads/2015/12/dropcenter-300x214.png 300w" sizes="(max-width: 575px) 100vw, 575px" style="border: 1px solid black; vertical-align: middle; margin: 0px; max-width: 100%;">

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
