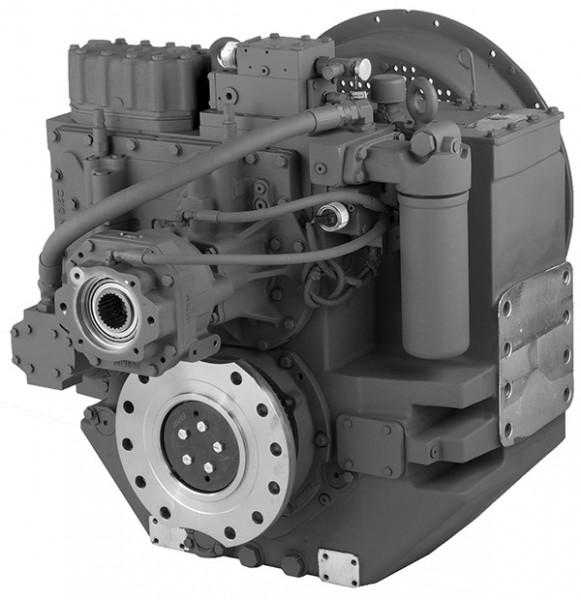

MGX-6650SC

Brand: Twin Disc
Product Code: MGX-6650SC
- +

Standard Equipment

  • Vertical offset, aluminum housing
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Mounted oil cooler for raw water cooling
  • Oil strainer and oil filter

Options

  • SAE J617 housing no.1
  • SAE J617 housing no. 0
  • SAE J617 housing no. 00
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 18” flywheel (SAE J620 size 460)
  • Flexible coupling for 21” flywheel (SAE J620 size 530)
  • Input flange for freestanding installation
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler for fresh water cooling
  • Output shaft driven trailing pump
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt), max. 209 Nm
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1187 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1186 Nm)

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction RatiosIntermediate DutyMedium DutyContinuous Duty
:1@ 1800 RPM@ 2100 RPM@ 1600 RPM@ 1800 RPM@ 1600 RPM@ 1800 RPM
1.51, 1.88, 2.03 2.37, 2.47, 2.81 2.93, 3.21 1069 kW
(1434 hp)		 1268 kW
(1700 hp)		 928 kW
(1244 hp)		 1044 kW
(1400 hp)		 911 kW
(1222 hp)		 1025 kW
(1375 hp)

* Ratings shown for use with standard right hand rotation engines.
The maximum allowable rated engine speed is 2300 rpm (2500 rpm for ratios 2.47:1, 2.93:1 and 3.21:1).

DIMENSIONS & WEIGHT

Vertical Offset
C 310 mm (12.20”)
S 300 mm (11.81”)
F 758 mm (29.83”)
L 440 mm (17.32”)
R 440 mm (17.32”)
Weight 1001 kg *

* dry weight, including SAE #0 housing and SAE 460 flexible coupling

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
