MGX-5086A
MGX-5095SC
Twin Disc MGX-5086SC Standard Equipment Near coaxial, aluminum housing Electric GP-valve with manual override EC050 .. Product #: MGX-5086SC based on 0 reviews

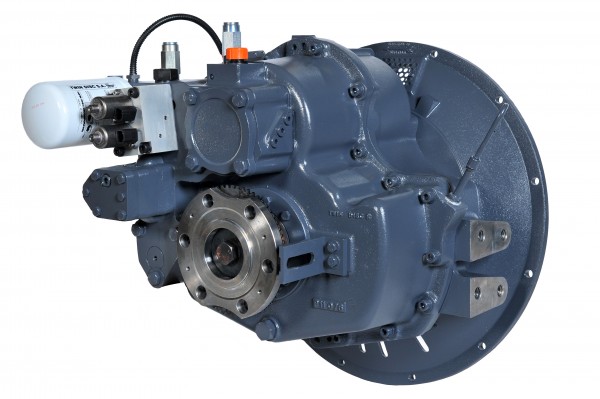

MGX-5086SC

Brand: Twin Disc
Product Code: MGX-5086SC
- +

Standard Equipment

  • Near coaxial, aluminum housing
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • SAE J617 housing no. 1
  • SAE J617 housing no. 2
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 11.5” flywheel (SAE J620 size 290)
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
    • SAE J744 size 101-2/4, 22-4 (SAE “B”, 2/4-bolt, max. 197 Nm)
    • SAE J744 size 101-2/4, 25-4 (SAE “B-B”, 2/4-bolt, max. 337 Nm)

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction RatiosPleasure CraftLight DutyIntermediate DutyMedium DutyContinuous Duty
:1@ 2300 RPM@ 2300 RPM@ 2100 RPM@ 1800 RPM@ 1800 RPM

1.06, 1.11, 1.33

1.53, 1.77, 2.05

2.28

530 kW

(710 hp)

460 kW

(617 hp)

351 kW

(471 hp)

301 kW

(404 hp)

262 kW

(351 hp)
2.53

492 kW

(660 hp)
2.88

447 kW

(600 hp)

418 kW

(560 hp)

340 kW

(456 hp)

273 kW

(366 hp)

* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 3200 rpm.

DIMENSIONS & WEIGHT

Near Coaxial
C 15 mm (0.59”)
S 178 mm (7.00”)
F 413 mm (16.24“)
L 254 mm (10.00”)
R 254 mm (10.00”)
Weight 135 kg *

* dry weight, including SAE #1 housing and SAE 355 flexible coupling

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
