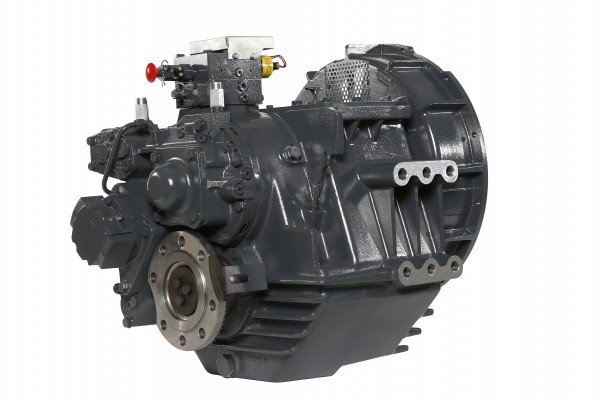

MGX-5136SC
Standard Equipment
- Vertical offset, aluminum housing
- Electric GP-valve with manual override
- EC050 Profile module – interface for engagement signals
- Oil strainer and oil filter
Options
- SAE J617 housing no. 1
- SAE J617 housing no. 0
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Flexible coupling for 18” flywheel (SAE J620 size 460)
- Input flange for freestanding installation
- Mechanical control valve
- EC050 E-Troll module – interface for engagement & trolling signals
- Harness with single point interface to Twin Disc EC300 control system
- Oil cooler with thermostatic bypass valve
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO:
- SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
- SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 197 Nm)
- SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 337 Nm)
- SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
- Hydraulic clutchable PTO:
- SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)
INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*
For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Medium Duty | Continuous Duty |
|---|---|---|---|---|---|
| :1 | @ 2300 RPM | @ 2300 RPM | @ 2100 RPM | @ 1800 RPM | @ 1800 RPM |
|
1.00, 1.10, 1.28 1.48, 1.73, 2.04 1.96 |
895 kW (1200 hp) |
746 kW (1000 hp) |
560 kW (751 hp) |
485 kW (650 hp) |
445 kW (597 hp) |
| 2.57 |
847 kW (1136 hp) |
716 kW (960 hp) |
|||
| 2.90 |
746 kW (1000 hp) |
671 kW (900 hp) |
522 kW (700 hp) |
448 kW (601 hp) |
408 kW (547 hp) |
* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 2800 rpm.
DIMENSIONS & WEIGHT
| C | 200 mm (7.87”) |
| S | 190 mm (7.47”) |
| F | 572 mm (22.52”) |
| L | 305 mm (12.01”) |
| R | 305 mm (12.01”) |
| Weight | 294 kg * |
* dry weight, including SAE #1 housing and SAE 355 flexible coupling
Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
