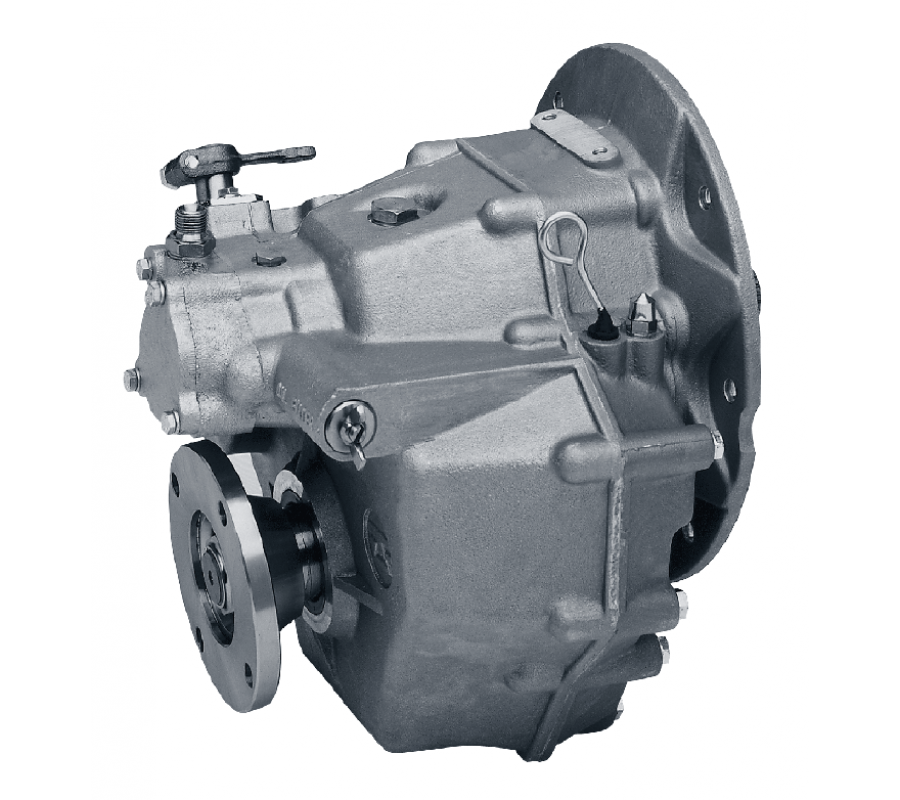

Twin Disc MG-5005A Standard Equipment Vertical offset, aluminum housing 8° down angle on output shaft Mechanical c.. Product #: MG-5005A based on 0 reviews

MG-5005A

Brand: Twin Disc
Product Code: MG-5005A
- +

Standard Equipment

  • Vertical offset, aluminum housing
  • 8° down angle on output shaft
  • Mechanical control valve
  • Oil strainer

Options

  • SAE J617 housing no. 4
  • SAE J617 housing no. 5
  • Borg Warner housing
  • Flexible coupling for 6.5” flywheel (SAE J620 size 165)
  • Flexible coupling for 7.5” flywheel (SAE J620 size 190)
  • Control cable bracket
  • Mechanical trolling valve
  • Oil cooler
  • Companion flange

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction RatiosPleasure CraftIntermediate DutyContinuous Duty
:1@ 2800 RPM@ 3600 RPM@ 2500 RPM@ 3200 RPM@ 2300 RPM@ 2500 RPM
1.54

101 kW

(135 hp)

110 kW

(148 hp)

56 kW

(75 hp)

72 kW

(97 hp)

45 kW

(60 hp)

49 kW

(66 hp)
2.00

82 kW

(110 hp)

105 kW

(141 hp)
2.47

60 kW

(80 hp)

78 kW

(105 hp)

41 kW

(55 hp)

53 kW

(71 hp)

33 kW

(44 hp)

36 kW

(48 hp)

* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 4500 rpm.

DIMENSIONS & WEIGHT

Vertical Offset Down Angle
C 111 mm (4.37”)
S 81 mm (3.19”)
F 224 mm (8.82”)
A 8°
Weight 25 kg *

* dry weight, including standard equipment

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
