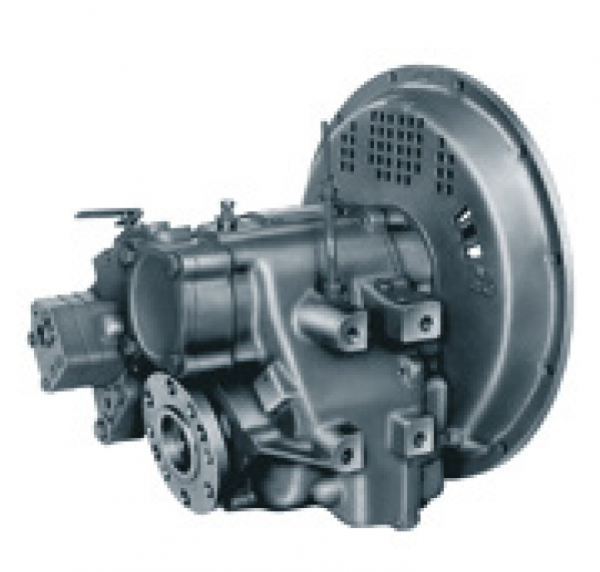

MG-5050RV

Brand: Twin Disc
Product Code: MG-5050RV
- +

Standard Equipment

  • Remote V-drive, aluminum housing
  • 10° down angle on output shaft
  • Input flange
  • Mechanical control valve
  • Oil strainer

Options

  • Mechanical trolling valve
  • Oil cooler
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction RatiosPleasure CraftLight DutyIntermediate DutyMedium DutyContinuous Duty
:1@ 2800 RPM@ 2800 RPM@ 2500 RPM@ 2100 RPM@ 2100 RPM

1.12, 1.25, 1.50

1.80, 2.04

272 kW

(365 hp)

254 kW

(341 hp)

187 kW

(251 hp)

128 kW

(172 hp)

116 kW

(156 hp)
2.50

239 kW

(320 hp)

223 kW

(299 hp)

* Ratings shown for use with standard right hand rotation engines.
The maximum allowable rated engine speed is 3300 rpm (5500 rpm in high speed configuration).

DIMENSIONS & WEIGHT

Remote V Drive
C 140 mm (5.52”)
S 93 mm (3.68”)
F 78 mm (3.06”)
F1 257 mm (10.13”)
L 207 mm (8.13”)
R 149 mm (5.85”)
A 10°
Weight 85 kg *

* dry weight, including input flange

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications
