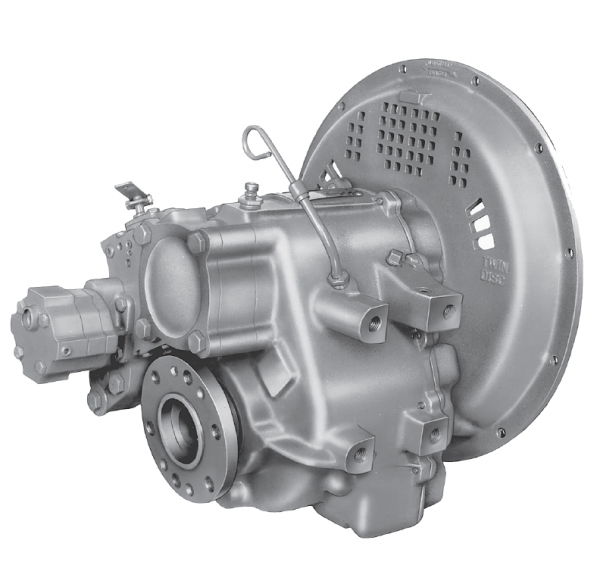

MG-5161RV

Brand: Twin Disc
Product Code: MG-5061RV
- +

Standard Equipment

  • Remote V-drive, aluminum housing
  • 7° down angle on output shaft
  • Input flange
  • Mechanical control valve
  • Oil strainer

Options

  • Electric control valve (12VDC or 24 VDC)
  • Mechanical trolling valve
  • Oil cooler
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction RatiosPleasure CraftLight DutyIntermediate DutyMedium DutyContinuous Duty
:1@ 2800 RPM@ 2800 RPM@ 2500 RPM@ 2100 RPM@ 2100 RPM

1.13, 1.28, 1.54

1.75

345 kW

(463 hp)

313 kW

(420 hp)

239 kW

(320 hp)

157 kW

(211 hp)

142 kW

(190 hp)
2.00

300 kW

(402 hp)
2.47

321 kW

(430 hp)

147 kW

(197 hp)

133 kW

(178 hp)

* Ratings shown for use with standard right hand rotation engines.
The maximum allowable rated engine speed is 3300 rpm (5500 rpm in high speed configuration).

DIMENSIONS & WEIGHT

Remote V Drive
C 146 mm (5.75”)
S 107 mm (4.21”)
F 71 mm (2.79”)
F1 267 mm (10.53”)
L 213 mm (8.40”)
R 156 mm (6.16”)
A 7°
Weight 89 kg *

* dry weight, including input flange

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
