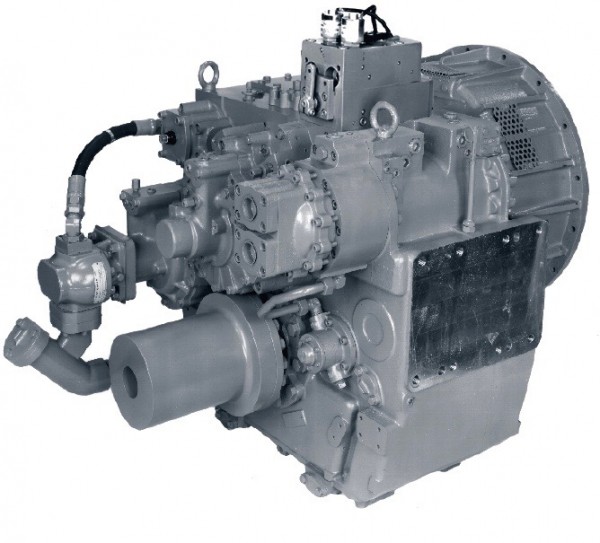

MG-6984RV

Standard Equipment

• Remote V-drive, aluminum housing
• 10° down angle on output shaft
• Input flange
• Electric GP-valve with manual override
• EC050 Profile module – interface for engagement signals
• Integral oil cooler for raw water cooling
• Oil strainer and oil filter

Options

• EC050 E-Troll module – interface for engagement & trolling signals
• Harness with single point interface to Twin Disc EC300 control system
• Output shaft driven trailing pump
• Companion flange/ bolts set
• Monitoring devices to customer’s specification
• Mounting brackets
• Live PTO
  • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) – max. 600 Nm
• Hydraulic Clutchable PTO
  • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) – max. 600 Nm

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 2100 rpm.

DIMENSIONS & WEIGHT

* dry weight, including input flange

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
