Twin Disc AM 345 Pump Drive Maximum Input Power 430 kW (577 hp)1:1 ratio @ 2600 rpm Cast iron housings Case hardened and g.. Product #: AM 345 Pump Drive based on 0 reviews

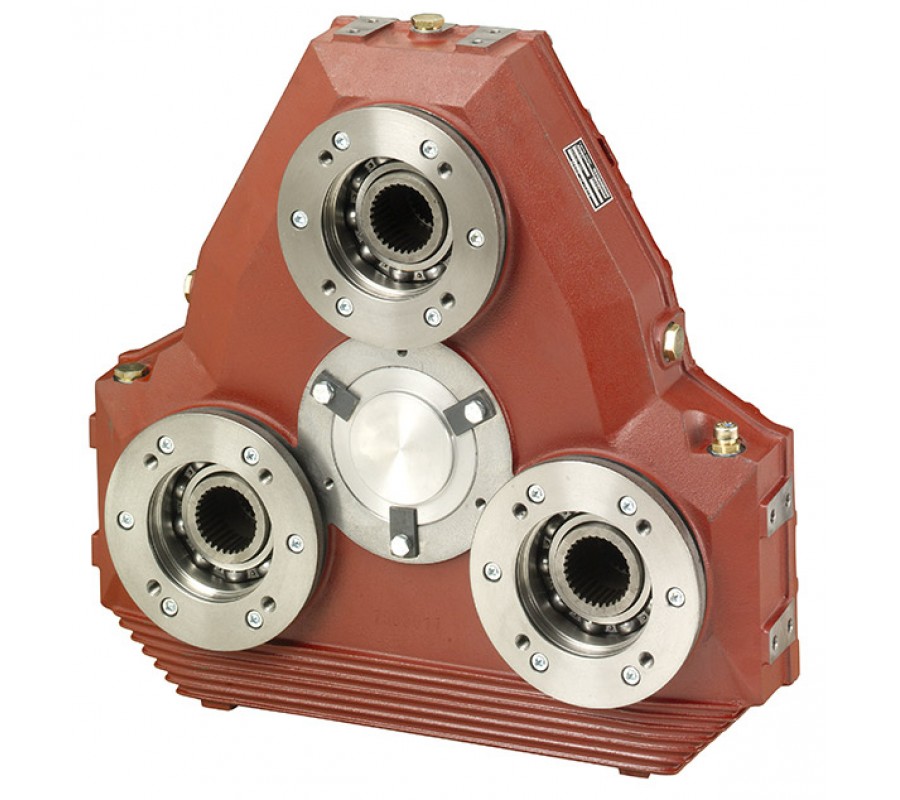

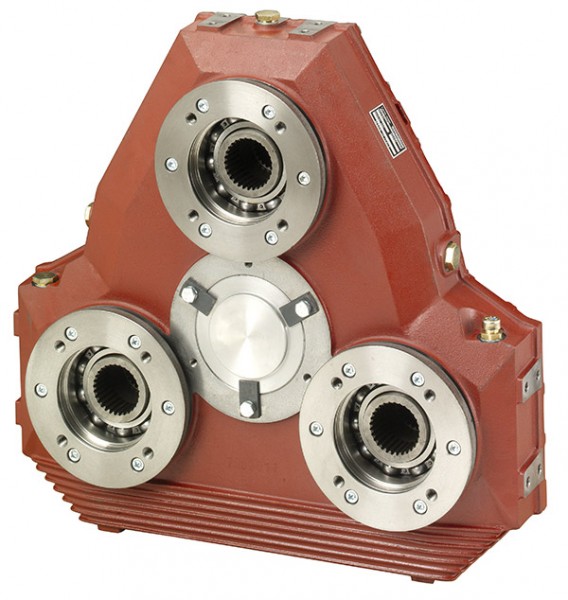

AM 345 Pump Drive

Brand: Twin Disc
Product Code: AM 345 Pump Drive
- +

Maximum Input Power 430 kW (577 hp)
1:1 ratio @ 2600 rpm

  • Cast iron housings
  • Case hardened and ground spur gears
  • Ball bearings
  • Case hardened shafts
  • Viton seals on input shaft
  • Output rotation opposite the direction of input rotation
  • Gear ratios identical on all outputs
  • Maximum input torque based on theoretically unlimited gear life and a minimum L10 bearing life of 10,000 hours

TECHNICAL DATA

Ratio
:1
MAXIMUM
INPUT TORQUE
N-m (lbf-ft)
MAX. OUTPUT TORQUE
PER PUMP PAD
N-m (lbf-ft)
MAXIMUM
INPUT SPEED
RPM
MAXIUM
OUTPUT SPEED
RPM
OIL QUANTITY
L (gal)
0.51 2080 (1534) 530 (391) 1950 3824 5.5 (1.45)
0.58 2010 (1482) 580 (428) 2050 3534 5.0 (1.32)
0.67 1910 (1409) 640 (472) 2200 3284 4.4 (1.16)
0.76 1840 (1357) 700 (516) 2300 3026 4.0 (1.06)
0.89 1680 (1239) 750 (553) 2400 2697 3.7 (0.98)
1.00 1620 (1195) 810 (597) 2600 2600 3.6 (0.95)
1.31 1390 (1025) 910 (671) 3000 2290 3.0 (0.79)
1.48 1270 (937) 940 (693) 3200 2162 2.8 (0.74)

DIMENSIONS
