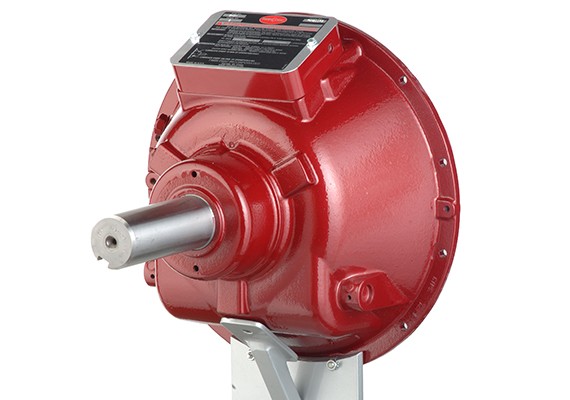

RO114P/214P
- Hydraulic or pneumatic actuation
- 90 to 100 PSI (621 to 689KPA) engagement pressure
- Suitable for side load and in-line applications
- Tapered roller main bearings
- Optional sintered iron and composite plates
- Standard ball bearing throw out collar
- Field conversion kits available
- Creates suitable application torque capacity
PTO Application Data Sheet (157k pdf)
SPECIFICATIONS
| Model Number | SAE HSG. | Max. Input Torque Nm (lb-ft) Class I | Clutch Maximum HP Rating | Maximum Safe Speed | Weight kg (lbs) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Organic | Sintered | Class II | Class III | Class IV | Solid Plates | Split Plates | ||||||||
| Nodular Drive Ring |
Nodular Drive Ring |
|||||||||||||
| RO114P0, RO114P1, | 0,1 | 1098 (810) | 746 (550) | 188 | 125 | 94 | 3000 | 2750 | 134 (296) | |||||
| RO214P0, RO214P1, | 0,1 | 2196(1610) | 1493 (1100) | 376 | 251 | 188 | 3000 | 2750 | 188 (416) | |||||
DIMENSIONS
