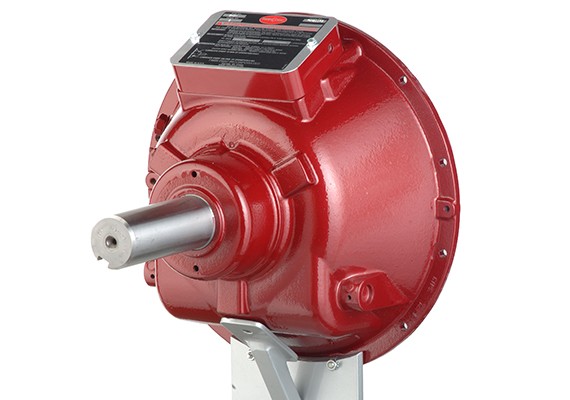

RO314P/311P
- Hydraulic or pneumatic actuation
- 90 to 100 PSI (621 to 689KPA) engagement pressure
- Suitable for side load and in-line applications
- Tapered roller main bearings
- Optional sintered iron and composite plates
- Standard ball bearing throw out collar
- Field conversion kits available
- Creates suitable application torque capacity
PTO Application Data Sheet (157k pdf)
SPECIFICATIONS
| Model Number | SAE HSG. | Max. Input Torque Nm (lb-ft) Class I | Clutch Maximum HP Rating | Maximum Safe Speed | Weight kg (lbs) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Organic | Sintered | Class II | Class III | Class IV | Solid Plates | Split Plates | ||||||||
| Nodular Drive Ring |
Nodular Drive Ring |
|||||||||||||
| RO314P0, RO314P1, | 0,1 | 3295 (2430) | 4195 (3094) | 564 | 376 | 282 | 3000 | 2700 | 259(572) | |||||
| RO311P0, RO311P1, | 0,1 | 2196(1610) | 2793 (2060) | 371 | 247 | 186 | 3000 | N/A | 217 (478) | |||||
DIMENSIONS
