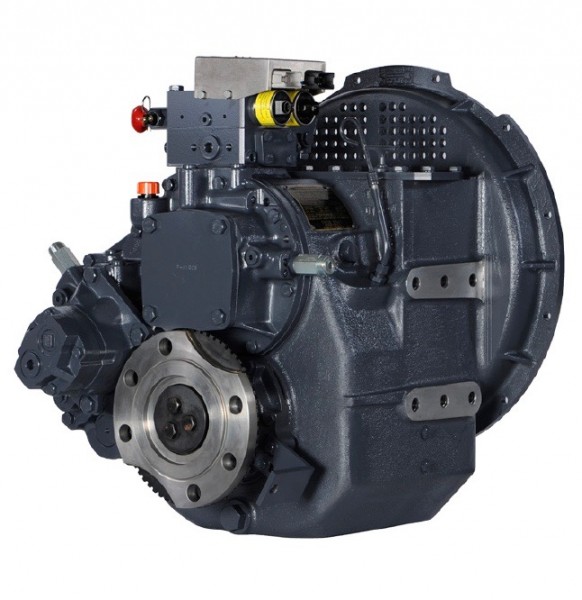

MGX-5114RV
Standard Equipment
- Remote V-drive, aluminum housing
- 7° down angle on output shaft
- Input flange
- Electric GP-valve with manual override
- EC050 Profile module – interface for engagement signals
- Oil strainer and oil filter
- Steel fabricated mounting brackets
Options
- Mechanical control valve
- EC050 E-Troll module – interface for engagement & trolling signals
- Harness with single point interface to Twin Disc EC300 control system
- Oil cooler with thermostatic bypass valve
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*
For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.
| Reduction Ratios | Pleasure Craft | Light Duty | Intermediate Duty | Medium Duty | Continuous Duty |
|---|---|---|---|---|---|
| :1 | @ 2300 RPM | @ 2300 RPM | @ 2100 RPM | @ 1800 RPM | @ 1800 RPM |
| 1.03, 1.20, 1.48 1.75, 1.92, 2.04 |
673 kW (902 hp) |
629 kW (843 hp) |
466 kW (625 hp) |
357 kW (479 hp) |
347 kW (465 hp) |
| 2.50 |
400 kW (536 hp) |
338 kW (453 hp) |
321 kW (430 hp) |
* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 3000 rpm.
DIMENSIONS & WEIGHT
| C | 203 mm (8.00”) |
| S | 133 mm (5.25”) |
| F | 54 mm (2.12”) |
| F1 | 449 mm (17.69”) |
| L | 279 mm (11.00”) |
| R | 203 mm (8.00”) |
| A | 7° |
| Weight | 240 kg * |
* dry weight, including input flange
Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
